2 Inch Spray Nozzle

As we all know, there are various kinds of sizes of spray nozzle. 1/8”, 1/4”, 3/8”, 1/2”, 3/4”, 1”, 1-1/4”, 1-1/2”, 2”, 2-1/2”, 3”, 4”, 5” and even 6”.

Most Spray Nozzles we used is around 1/8” to 1/2”. for the nozzle inlet connect size with 2”, not all nozzle can do that large. Today we will introduce some 2” inch spray nozzles, and even bigger than 2” spray nozzle.

First, let’s see some of the 2” full cone spray nozzle.

1. 2 inch Full Cone Spiral Nozzle

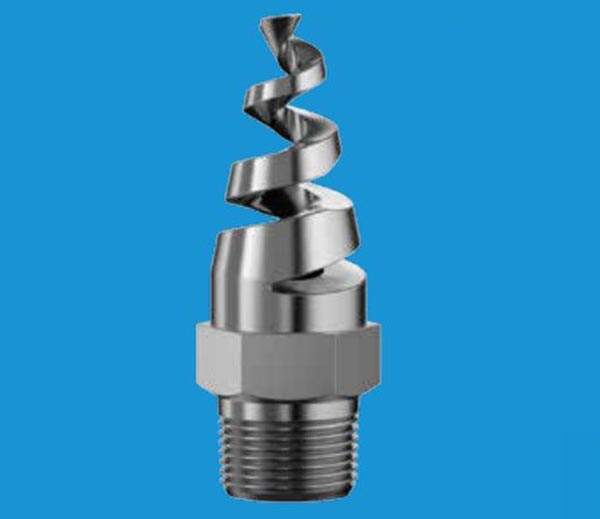

2-inch-spiral-spray-nozzle-ss-or-pt-or-pv-material

Actually, this can be either made of full cone or hollow cone.

Here we would like introduce the 2”inch full cone spray nozzle.

The spray angle can be 60, 90, 120, 150, or 170.

The work pressure can be 0.7 bar to 25 bar.

The capacity flow rate range is around 365l/min to 4060l/min for 2 inch.

The materials can be 254SMO, 316SS, 2205SS, 2507SS, PTFE and PVDF.

2. 2 inch BBS/BBW Short Type Full Cone Nozzle

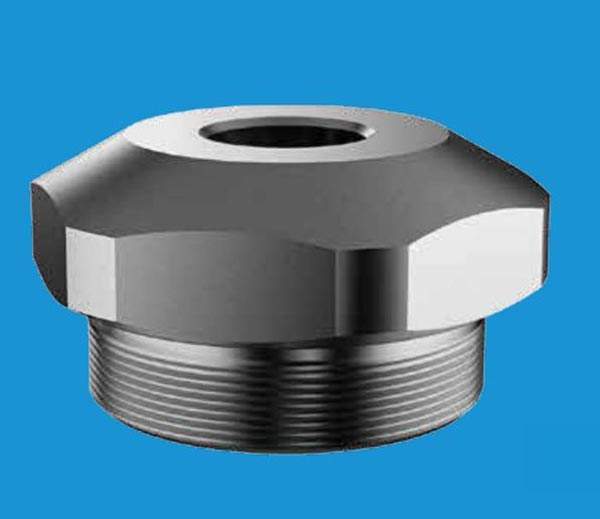

2 inch bbs-bbw-short-type-full-cone-nozzle

The BBS/BBW series full cone nozzle is composed of nozzle body and special vane. The special vane not only provides excellent atomization performance but also reduces the nozzle length effectively. The total length is reduced by 35% comparing to other types of full cone nozzles, which help to solve the installation problems with narrow space and reduce the cost of raw materials effectively.

The 2 inch short type spray angle can be 90 and 120.

The work pressure is around 0.5 bar to 10 bar.

The 2 inch spraying capacity flow rate range is around 127 l/min to 705l/min.

The Materials can be 254SMO, 316SS, 2205SS, 2507SS and PVDF.

3. 2 inch DT Full Cone Max Passage Spray Nozzle

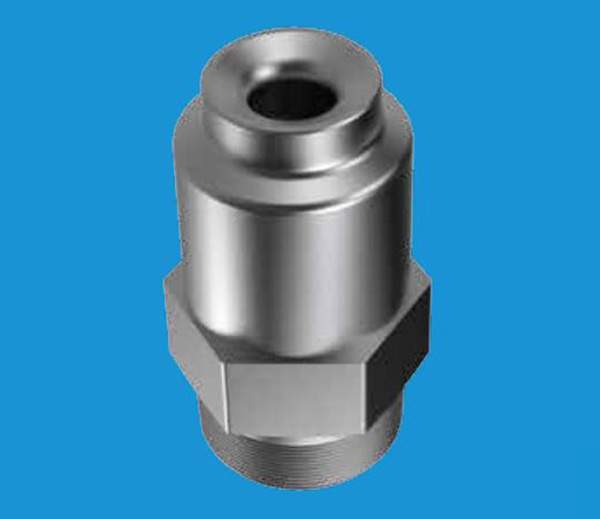

2 inch dt full cone max passage spray nozzle

There is a removable X shape vane inside the nozzle body. It can be male or female connection. It is a ideal max passage nozzle for liquid.

The spray pattern is full cone with unifo

rm distribution.

The spray angle is 60, 90 and 120.

The rated home diameters for 2 inch have 12.1 ,14.2 and 19.1 mm.

The work pressure range is from 0.2 bar to 7 bar.

The 2 inch capacity flow rate is around 42.5 l/min to 798.

4. 2 inch DP Full Cone Max Free Spray Nozzle

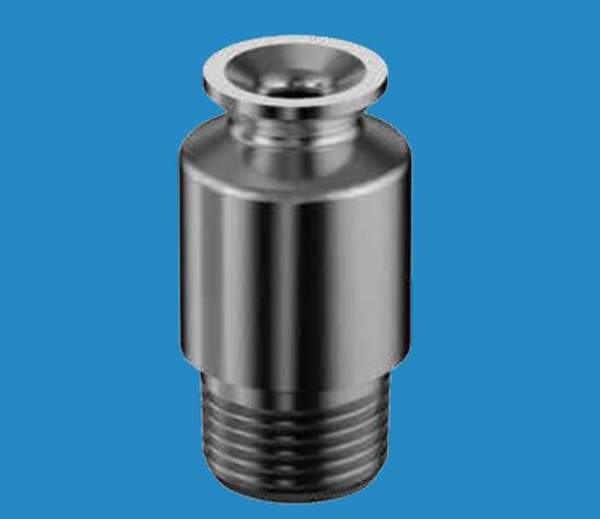

2 inch dp full cone max free spray nozzle

There are two special S-style internal vanes inside the nozzle body. It also can be male or female connection. The flange connection is also available.

This is the full cone nozzle with the largest free passage.

The spray angle can be30 60, 90 and 120.

The work pressure can be 3 PSI to 80 PSI.

The 2 inch capacity flow rate is from 25.4 gallons/minutes to 259 gallons/minutes.

5. 2 inch BB Series full cone spray nozzle

cyco-bb-series-full-cone-spray-nozzle-ccnozzle-com

The BB series 2” inch full cone nozzles includes round/square wide angle, round/square standard angle and narrow angle. Actually some of them can be made 4” or 5” size.

More details we may check on the all models of the full cone spray nozzle.

Second, Let’s look at some 2 inch hollow spray nozzle.

6. 2 inch hollow cone Spiral Nozzle

2-inch-spiral-spray-nozzle-ss-or-pt-or-pv-material

This 2 inch hollow cone spiral nozzle’s spec is nearly the same as the 2 inch full cone as above mentioned.

7. 2 inch Flanged Silicone Carbide Spiral Nozzle

flanged-silicone-carbide-spiral-spray-nozzle-1

The flanged spray nozzle, with a hollow spray pattern, fixes on the polyester flange, have a cuspidal structure which id made of carborundum.

The flanged spray nozzle, with a hollow spray pattern, fixes on the polyester flange, have a cuspidal structure which id made of carborundum.

7. 2 inch AASR/AASB mid-high flow rate foundry spray nozzle

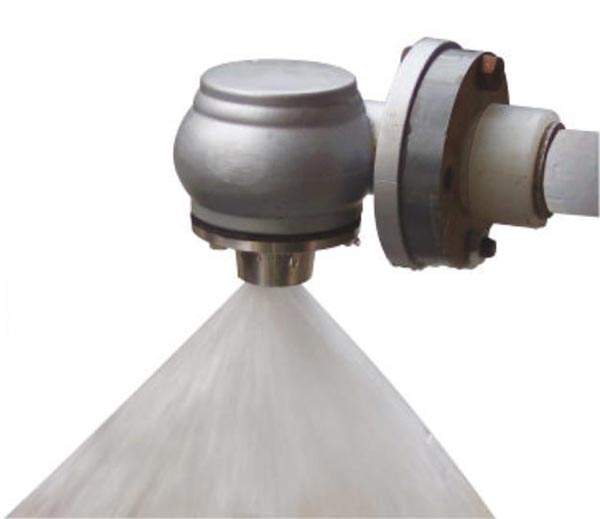

cyco-mid-high-flow-rate-foundry-nozzle-at-ccnozzle-com

The AASR/AASB series both have 2 inch joint size. AASR is inner connector, AASB is flange connection.

The work pressure is from 0.2 bar to 7 bar.

The capacity flow rate is around 73 l/min to 790 l/min.

The spray angle is from 45 to 52.

9. 2 inch large flow carbide silicone spray nozzle

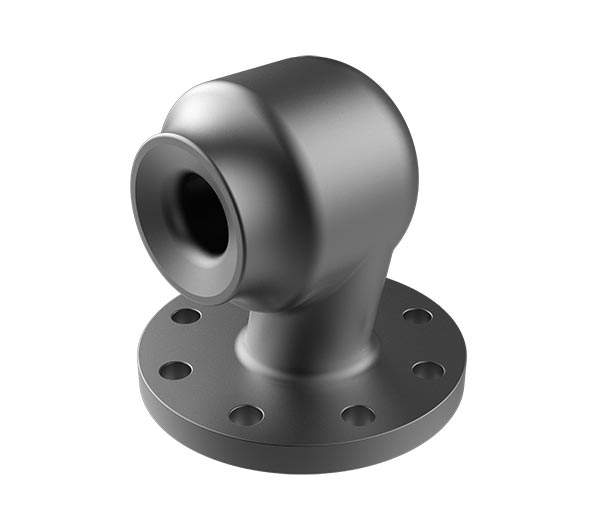

cyco-large-flow-carbide-silicone-spray-nozzle-ccnozzle-com1

Large carbide silicone spray nozzle, with its spray pattern hollow cone shape, can spray an annular area.

The work pressure is from 0.2 bar to 7 bar.

The capacity flow rate is around 73 l/min to 790 l/min.

The spray angle is from 30 to 45.

10. 2 inch AASW large flow carbide silicone spray nozzle

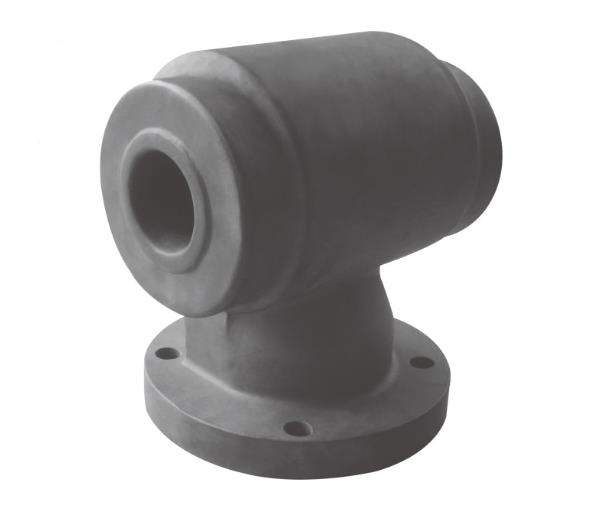

cyco aasw large flow carbide silicone spray nozzle ccnozle-com

AASW is flange inlet, hollow-cone shaped wide angle large flow nozzle.

The work pressure is 0.2 bar to 3 bar.

The spray angle for 2 inch is from 112 to 125.

The capacity flow rate is from 86.6 l/min to 908 l/min.

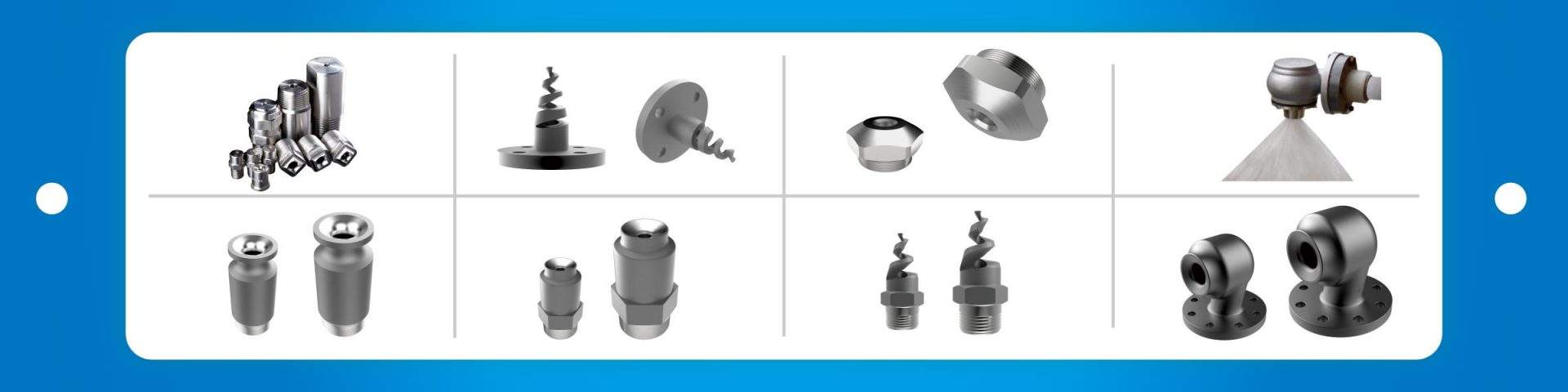

2-inch-spray-nozzle-collections

So there all about the 2″ spray nozzles, including the full cone and hollow cone two spraying patterns. Hope our introduction is helpful for you.
