Fan Spray Nozzle Types and Models

Fan Spray Nozzle Includes various kinds of types, CC series are common flat fan nozzle, QJJ Series are quick-dismantling fan nozzle, 26988 series are plastic fan nozzle, There are also the KY PVDF fan nozzle, stainless V shape fan nozzle, stainless W shape fan nozzle, SQJV fan nozzle and Flat pressure air atomizing nozzle. Here below, we would like to introduce some of these nozzles.

CC Series are common types of flat fan nozzle. There are models are as blow.

cc1/4-SS-11001, cc1/4-SS-110015, cc1/4-SS-11002, cc1/4-SS-11004, cc1/4-SS-11005, cc1/4-SS-11006, cc1/4-SS-11008, cc1/4-SS-11010, cc1/4-SS-11015 and cc1/8-SS-11001.

They can produce a high impact flat fan spray pattern with spray angle 1 to 150 degree, and also can produce a zero angle straight solid stream.

The fan spray angle depends on the flat fan nozzle head shape and the spray pressure.

They can produce a high impact flat fan spray pattern with spray angle 1 to 150 degree, and also can produce a zero angle straight solid stream.

The fan spray angle depends on the flat fan nozzle head shape and the spray pressure.

CC series flat fan nozzle can be divided into wide angle fan nozzle (100-150 degree), narrow angle spray nozzle (6-60 degree) and standard angle spray nozzle (60 to 100 degree) according to fan spray angle.

cc-series-flat-fan-spray-nozzle-spray-pattern
CYCO-Stainless-Steel-Fire-Fighting-Flat-Fan-32
Narrow-Angle-Flat-Fan-Nozzle-15-50-Degrees

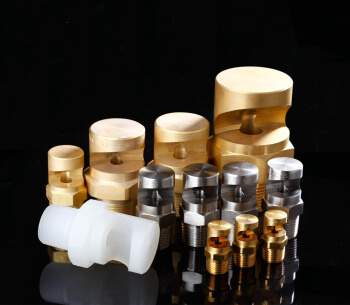

High-Pressure-Washer-Nozzle-Stainless-Steel-Vee-42

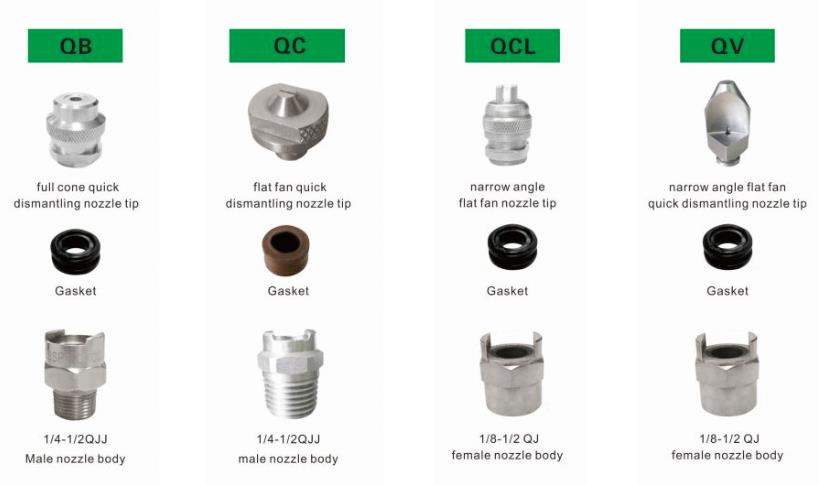

QJJ Quick dismantling fan nozzle includes the SS sub-series and plastic sub-series. Their features are easy to dismantle and replace, and can be quick-installed and quick dismantled.

Fan Spray Nozzle Types and Models 1

QJJ Quick dismantling fan nozzle models are as below:

QC5001, QC5002, QC5003, QC5004 and QC5005.

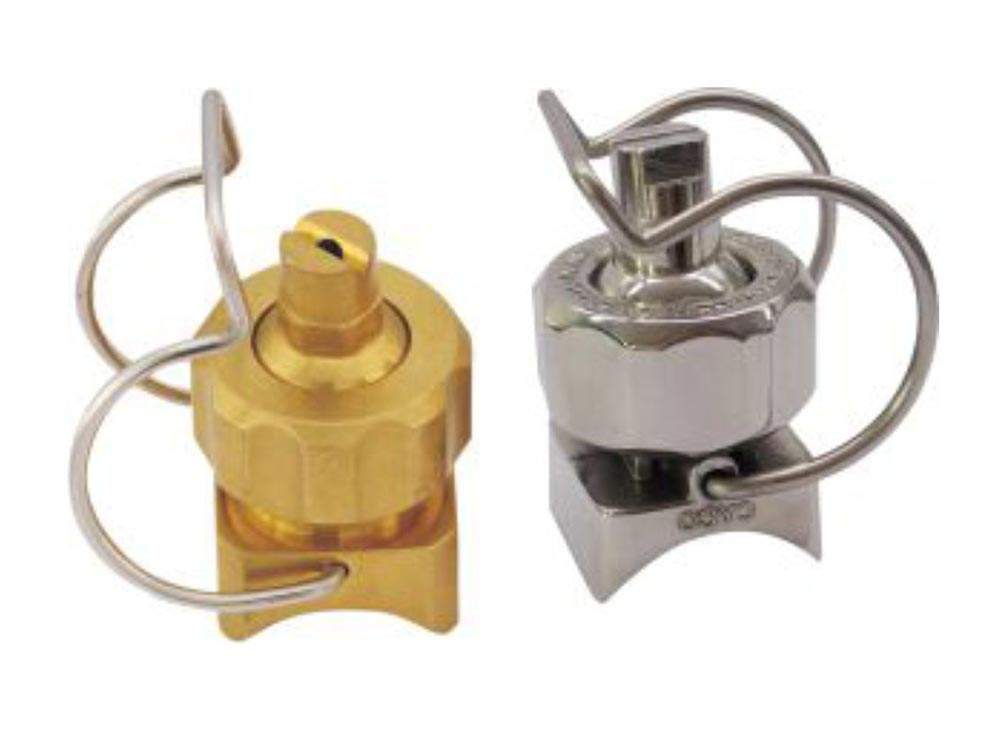

26988 series adjustable clamp flat fan nozzle actually is also a kind of quick-dismantling nozzle with dismountable spray tips.

Fan Spray Nozzle Types and Models 2

Adjustable clamp flat fan nozzle models are as below:

CT1550, CT1570, CT15110, CT2530, CT2560, CT1570, CT15100, CT4020 and CT4030.

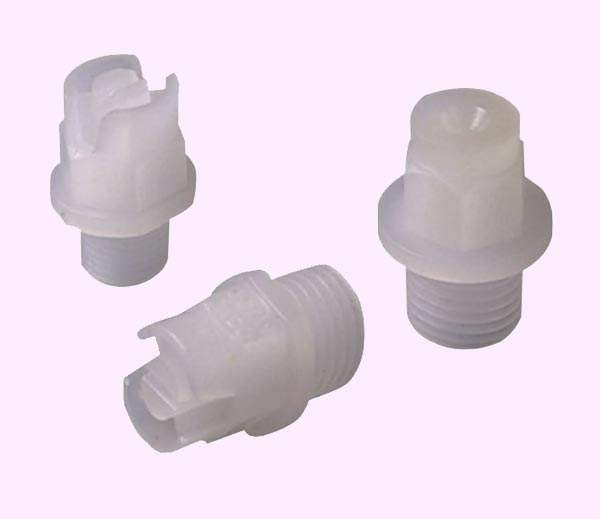

PVDF nozzle also called the KY series flat fan nozzle, their feature is that the material is made of PVDF, which is a sort of natural & pure material without any pigment. It can keep the high clarification in some industrial processing. The flat fan spray angle is around 65 to 120 degree.

pvdf-nozzle

The available screw sizes of PVDF nozzle is 1/8”, 1/4” and 3/8”, and the thread type mainly is BSPT.

Their models are as below:

CC-KY-1/4-6510, CC-KY-1/4-6503, CC-KY-1/4-6504, CC-KY-1/4-6505, CC-KY-1/4-656508 and CC-KY-1/4-6520.

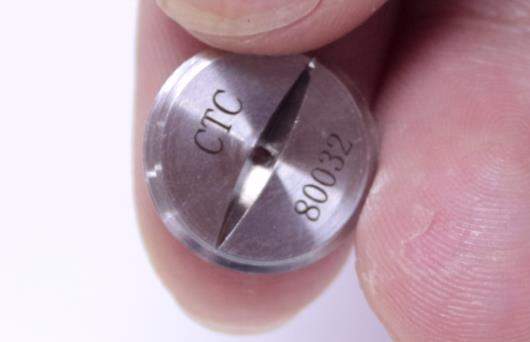

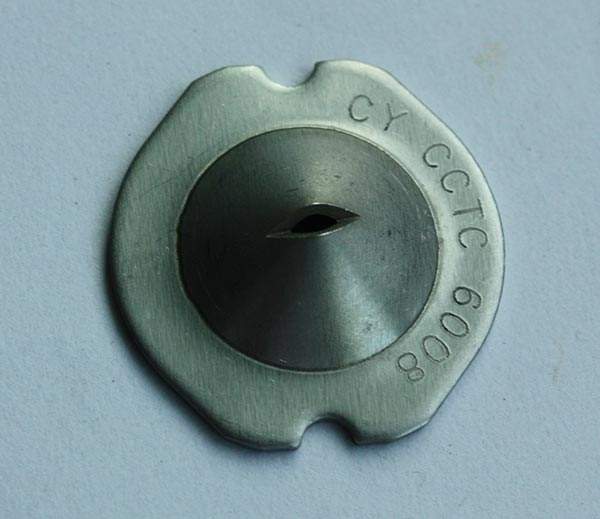

CTC series and CCTC series flat fan spray nozzle, their shapes are like round slices. One if low pressure, one can be regard high pressure. They can be used various kinds of low pressure washing or high pressure cleaning.

disc-flat-fan-nozzle-cctc-series
ctc low pressure flat fan nozzle cyco

The CTC low pressure flat fan nozzle’s max work pressure can be 10 bar; the CCTC dis flat fan nozzle;s max work pressure can be 55 bar.

There are also some other kinds of flat fan spray nozzle, for example, air absorption flat fan spray nozzle and wind jet fan nozzle etc. We will not introduce all of them here.

If you are interested in one of them, please feel free to contact us to communicate more details.
