Project Description

Adjustable Clamp Nozzle

Adjustable Ball-Type Clamp Nozzle have got two types: clamp connection type (26988/27988 series) and thread connection type (155 series).

  • cyco-plastic-clamp-spray-nozzle-26988
  • adjustable-clamp-nozzle
  • adjustable-clamp-nozzle

Common Application:

Metal Cleaning

Degreasing in surface treatment

Phosphatizing in surface treatment

Other Low Pressure Spraying Applications

Adjustable Clamp Nozzle Features (26988/27988 series):

The clamp connection type nozzle is positioned on the pipe with spring clamp while the thread connection type nozzle is positioned by the way of thread connection.

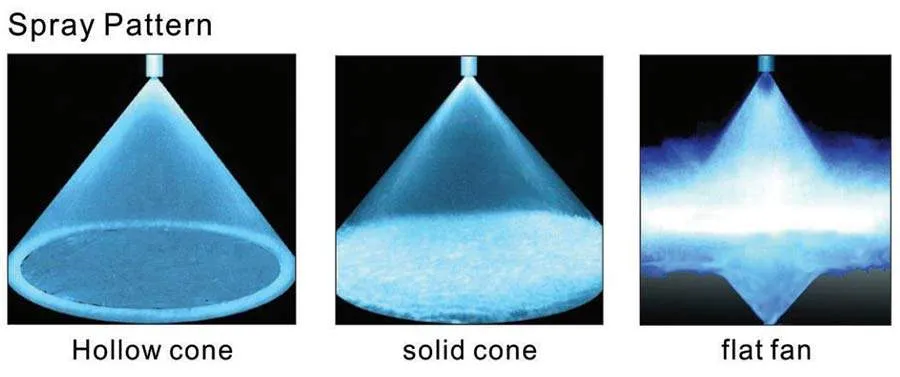

Adjusting Ball-type nozzle provides hollow cone spray pattern, solid cone spray pattern and flat fan spray pattern. It could meet various needs by directly connecting ball spray tip or by indirectly connecting spray tip with threaded ball or quick dismantling ball. It permits accurate alignment and convenient nozzle positioning with out disturbing pipe connection.

spay-pattern-of-cyco-adjustable-clamp-nozzle

Adjusting Ball-type nozzle allows for quick and easy tip replacement. Spray tips can be removed without the use of tools. Just remove the existing spray tips manually and install the new tip.

Clamp Nozzle Specification:

Type Clamp Size Clamp Outer Dia.(mm) Pipe Orifice Dia. (mm)
26988 1 32-35 14
1-1/4 38-43 16
1-1/2 44-51 18
2 54-60 20
27988 1/2 21 14
3/4 27
2 54-60

Threaded Nozzle Specification:

Type Connection Thread Size (inch)
155 1/8
1/4
3/8
1/2

Materials Characteristics:

Parts Materials
Cap Spray Tip Base Fiber-glass-reinforced PP (25%fiber) with maximum temperature of 82ºC good performance on chemical resistance
Carbon fiber-glass-reinforced PP(40fiber) with maximum temperature of 120ºC good performance on chemical resistance and abrasion resistance
Spring Clamp Spring Clamp / Hardened 303 stainless steel
Gasket butadience acrylonitirile rubber
fluorine rubber
hollow cone spray tip of adjustable clamp nozzle

Hollow Cone Spray Tip:

Nozzle Type Capacity Liters per minute (bar) Spray Angle (bar)
0.3 0.7 1 1.5 2 3 4 0.5 1.5 4
AT15-30.1 6.2 8.8 10.4 12.6 14.5 17.6 20.2 46° 49° 51°
AT25-30.1 7.5 10.7 12.7 15.4 17.6 21.4 24.6 45° 47° 50°
AT55-50.1 13.5 19 22.7 27.8 32 39.2 45.2 38° 46° 48°
AT55-50.3 13.5 19 22.7 27.6 31.8 38.7 44.4 75° 45° 76°

Flat Fan Spray Tip:

Spray Tip Tyle ( spray angle at 3 bar) Capacity (L/min) (bar)
15° 25° 40° 50° 65° 80° 0.3 0.7 1 1.5 2 3
CT6510 CT80100 1.2 1.9 2.3 2.8 3.9 4.6
CT4020 CT5020 CT6520 2.5 3.8 4.6 5.6 7.9 9.1
CT2530 CT4030 CT5030 CT6530 3.7 5.7 6.8 8.4 11.8 13.7
CT4040 CT5040 CT6540 CT80400 5.0 7.6 9.1 11.2 15.8 18.2
CT550 CT4050 CT5050 CT6550 6.2 9.5 11.4 14 19.7 23
CT2560 CT4060 CT5060 CT6560 CT8060 7.5 11.4 13.7 16.7 24 27
CT1570 CT1570 CT4070 CT5070 CT6570 CT8070 8.7 13.3 16 19.5 28 32
CT15100 CT15100 CT40100 CT50100 CT65100 CT80100 12.5 19.1 23 28 39 46
full cone spray tip of adjustable clamp nozzle

Full Cone Spray Tip:

Nozzle Type Capacity Liters per minute (bar) Spray Angle (bar)
0.3 0.7 1 1.5 2 3 4 0.5 1.5 4
BT6 1.6 2.3 2.6 3.2 3.7 4.5 5.1 69° 74° 68°
BT12.5 3.4 4.8 5.4 6.8 7.7 9.3 10.6 69° 74° 68°
BT25 6.7 9.5 10.9 13.5 15.4 18.6 21 64° 67° 63°
BT50 13.5 19.1 21.9 27 31 37 42 91° 94° 88°
quick dismantling ball of adjustable clamp nozzle

Quick Dismantling Ball Specification:

Quick Dismantling Ball Type Connection Object
BLQ Quick Dismantling Object
threaded ball of adjustable clamp nozzle

Threaded Nozzle Specification:

Threaded Ball Type Thread Size (inch)
BL1 1/8
BL2 1/4
BL3 3/8
flat fan quick dismantling spray tip

Flat Fan Quick Dismantling Spray Tip:

Spray Tip Tyle ( spray angle at 3 bar) Capacity (L/min) (bar)
50° 65° 80° 95° 100° 0.3 1 3 5 7 14
QC5001 QC6501 QC8001 QC9501 QC11001 0.12 0.23 0.39 0.51 0.6 0.85
QC5002 QC6502 QC8002 QC9502 QC11002 0.25 0.45 0.79 1 1.2 1.7
QC5003 QC6503 QC8003 QC9503 QC11003 0.37 0.69 1.2 1.5 1.8 2.6
QC5004 QC6504 QC8004 QC9504 QC11004 0.5 0.92 1.6 2 2.4 3.4
QC5005 QC6505 QC8005 QC9505 QC11005 0.62 1.1 2 2.5 3 4.3
QC5006 QC6506 QC8006 QC9506 QC11006 0.75 1.3 2.4 3.1 3.6 5.1
QC5008 QC6508 QC8008 QC9508 QC11008 1 1.8 3.2 4.1 4.8 6.8
QC5010 QC6510 QC8010 QC9510 QC11010 1.2 2.3 3.9 5.1 6 8.5
QC5015 QC6515 QC8015 QC9515 QC11015 1.9 3.4 5.9 7.6 9 12.8
QC5020 QC6520 QC8020 QC9520 QC11020 2.5 4.6 7.9 10.2 12.1 17.1
QC5030 QC6530 QC8030 QC9530 QC11030 3.7 6.8 11.8 15.3 18.1 26
full cone quick dismantling spray tip

Full Cone Quick Dismantling Spray Tip:

Nozzle Type Capacity Liters per minute (bar) Spray Angle (bar)
0.5 0.7 1.5 2 4 6 10 0.5 1.5 6
QB1 0.25 0.38 0.54 0.62 0.85 1 1.3 69° 74° 68°
QB2 0.65 0.76 1 1.2 1.7 2 2.6 69° 74° 68°
QB3 0.98 1.1 1.6 1.9 2.5 3.1 3.9 64° 67° 63°
QB3.5 1.1 1.3 1.9 2.2 3 3.6 4.5 91° 94° 88°
QB5 1.6 1.9 2.7 3.1 4.2 5.1 6.5 69° 74° 68°
QB6.5 2.1 2.5 3.5 4 5.5 6.7 8.4 69° 74° 68°
QB10 3.3 3.8 5.4 6.2 8.5 10.2 13 64° 67° 63°

Ordering Info (Clamp Nozzle):

26988 1 D14 PP CT6530 PP
Nozzle Type Clamp size Pipe orifice Dia. Material Code Spray Tip Type Material Code

Ordering Info (Threaded Nozzle):

155 3/8 PP BLQ PP CT6505 PP
Nozzle Type Clamp size Pipe orifice Dia. quick Dismantling Ball Type Material Code Spray Tip Type Material Code
