Fine mist spray nozzles| Fine Misting Nozzle |

Fine mist nozzle

Fine Misting nozzle / Micro Fogging Nozzle utilizes the fluid pressure to produce the extremely fine particle, and the spray pattern is a uniform hollow cone, which can make the spray like fogs.

Fine misting nozzle types

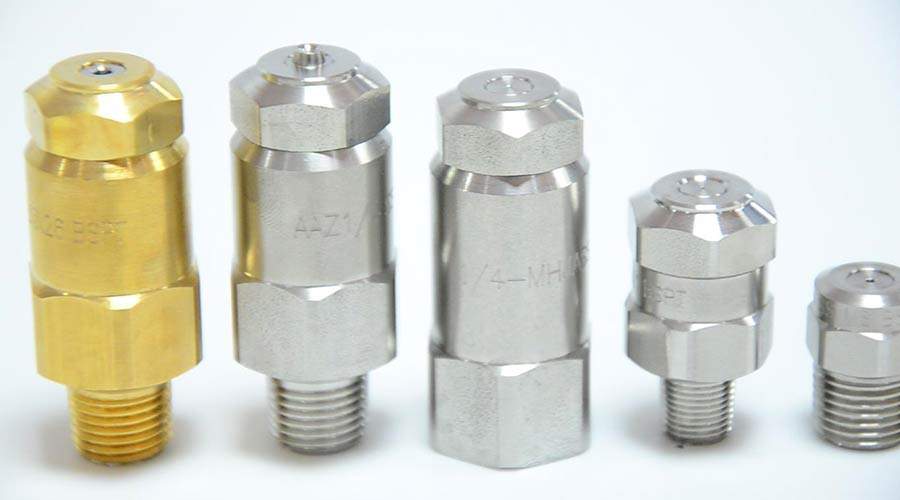

Fine mist spray nozzles |AAZ-Fine-Misting-Spray-Nozzle-Series-2
AAZ-Fine-Misting-Spray-Nozzle-Series-1

AAZ Fine Misting Nozzle Series Spraying Effect

AAZ-fine-misting-nozzle---LNN--spraying-effect
AAZ-fine-misting-nozzle---NN-Model-spraying-effect
AAZ-fine-misting-nozzle---LNN-W-model-spraying-effect
AAZ-fine-misting-nozzle---M-model-spraying-effect

All the parts of fine mist nozzles are precisely composed. The inlay of the orifice, the tapered core, and the strainer are easy to dismantle for examining and washing. All the above nozzles have strainers.

Fine Mist Spray Nozzle Features:

CYCO & Changyuan fine misting nozzles can produce extremely fine droplets by using the liquid pressure, it has a hollow cone spraying pattern that with good misting effect.

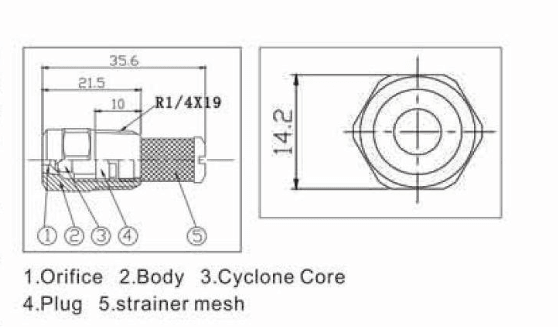

M series nozzle is mainly composed of a 1/4” NPT /BSPT (male) threaded connector and a dismantling insert which makes it convenient to clean or replace.

N and NN series nozzle are mainly composed of a nozzle base, body, insert, cyclone core and a cyclone core base.

LN & LNN series nozzle contains filter inside.

N-W and NN-W series nozzle is the same structure with N&NN series, but it’s wide angle inserted and contains filter inside.

All the inserts and cyclone cores are made of stainless steel.

aaz fine misting nozzle

Common Application

Moistening In Air Control Chamber

Cooling For Gas And Metal

Liquid Medicine Spraying

Humidify Conditioning

Evaporative Cooling

Fine Misting Nozzle Performance Data

Fine misting nozzle performance data

LNN
MN		 LN
N		 M orifice  Dia. (mm) Core Type Capacity (L/h) Spray Angle (Degree)
2 bar 5 bar 10 bar 20 bar 40 bar 50 bar 70 bar 3 bar 6 bar 20 bar
0.6 0.6 0.6 0.41 206 4.3 6.1 8.6 9.7 11.4 35 65
1 1 1 0.51 210 5.1 7.2 10.2 14.4 16.1 19.1 45 62 72
1.5 1.5 1.5 0.51 216 4.8 7.6 10.8 15.3 22 24 29 65 70 72
2 2 2 0.71 216 6.4 10.2 14.4 30 29 32 38 70 75 77
3 3 3 0.71 220 9.7 15.3 22 31 43 48 57 65 70 73
4 4 4 1.1 220 12.9 20 29 41 58 64 76 72 81 84
6 6 6 1.1 225 19.3 31 43 61 86 97 114 73 79 81
8 8 8 1.5 225 26 41 58 82 115 129 153 85 89 91
10 10 10 1.6 420 32 51 72 102 144 161 191 82 84 86
12 12 12 1.9 420 39 61 86 122 173 193 230 78 82 85
14 14 14 1.9 421 45 71 101 143 200 225 265 85 88 90
18 18 18 1.9 422 58 92 130 183 260 290 345 81 84 86
22 22 22 1.9 625 71 112 159 225 320 355 420 70 72 75
26 26 26 2.2 625 84 133 187 265 375 420 495 73 74 77

Strainer specification: 0.6# with 200 strainer mesh, 1-3# with 100 strainer mesh, 4-26# with 50 strainer mesh.

Wide Angle Performance
LNN-W
LN-W		 NN-W
N-W		 orifice  Dia. (mm) Core Type Capacity (L/min) Spray Angle
1 Bar 2 Bar 3 Bar 5 Bar 3 Bar 6 Bar
2W 2W 0.99 210 6.4 7.9 10.2 165
3W 3W 0.99 216 6.8 9.7 11.8 15.3 157
4W 4W 1.5 220 11.4 16.1 19.7 25 156 155
6W 6W 1.5 225 18.2 18.2 32 41 152

Size and Weight:

Size and Weight
Type Length （mm) Adapter (hexagonal) (mm) Nozzle Tip (hexagonal) (mm) Weight
LN&LN-W 47.5 20.6 17.4 90
LNN&LNN-W 51.5 20.6 17.4 90
N&N-W 31.5 17.4 17.4 40
NN-NN-W 33.9 17.4 17.4 40
M 21.5 14.2 10

Order Info1:

Order Info
AAZ1/4 LNN – SS 0.6
↓ ↓ ↓ ↓
Thread Size Nozzle Type Material Code Capacity Size

Order Info2:

Order Info
AAZ1/4 LNN – SS 2W
↓ ↓ ↓ ↓
Thread Size Nozzle Type Material Code Capacity Size
Download Specification
Overview
Quick Details
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
After Warranty Service:
Online support
Local Service Location:
None
Showroom Location:
None
Video outgoing-inspection:
Provided
Machinery Test Report:
Provided
Marketing Type:
Hot Product 2019
Place of Origin:
Guangdong, China
Brand Name:
CY Spray
Condition:
New
Material:
Brass,SS
Thread Size:
10/24 UNC
Application:
cooling,humidification,washing
orifice diameter:
0.15,0.18,0.20,0.25,0.3 mm
Brand:
CY
OEM:
yes
Working Pressure:
30-100 bar
Usage:
Garden
Nozzle Size:
0.1mm,0.15mm,0.2mm,0.3mm,0.4mm,0.5,0.6mm,0.7mm,0.8m
Orifice:
Ceramic or SS
Packaging & Delivery
Packaging Details
Package by stanard ,external with stretch film
Picture Example:
Lead Time:
Quantity(Pieces) 1 – 20 21 – 100 101 – 200 >200
Est. Time(days) 5 7 10 To be negotiated

Can’t find your nozzle, no problem, directly Email our expert
