Project Description

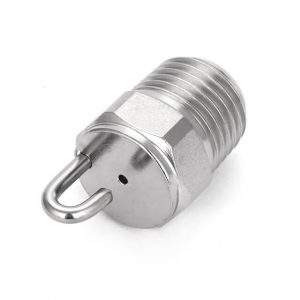

JM Impingement Mist Nozzle
The JM Impingement Mist Nozzle can be used for urban landscape misting spraying.
Spray Characteristics
- Finest fog of any direct pressure nozzle

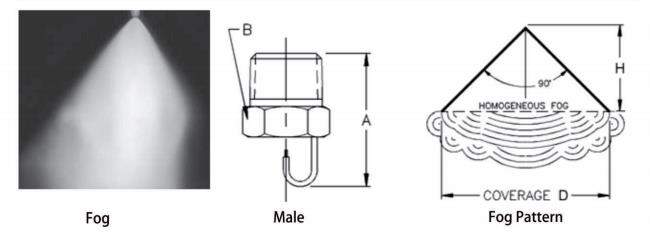

- Spray pattern: Cone-shaped fog
- Spray Angle: 90°. For best 90° pattern operate nozzle at or above 4 bar
- Flow rate: 0.043 to 5.34 L/m
Design Features of JM Impingement Mist Nozzle:
- High-energy efficiency
- One-piece, compact construction
- No whirl vances or internal parts
- 1/8″ or 1/4″ male connection

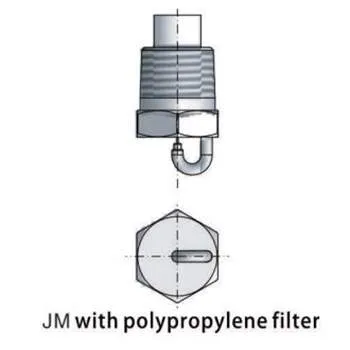

- 100-mesh screen, 20 micron paper filter or 70 micron polypropylence filter optional
- Optional welded pin and optional safety wire hole

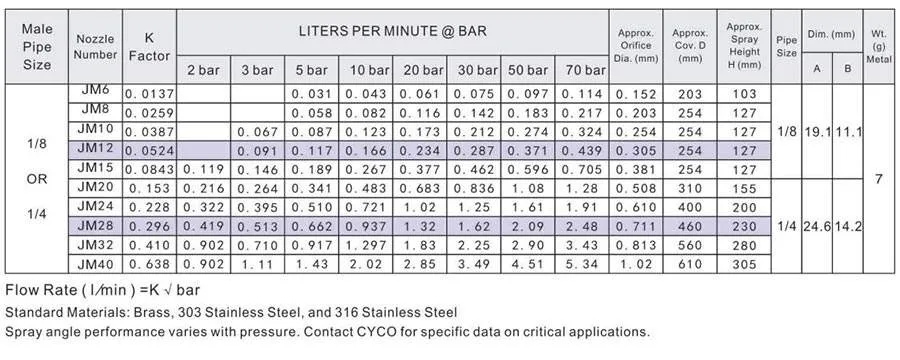

Performance Data of JM Impingement Mist Nozzle:
| Nozzle No. | K Factor | Capacity (L/min) Bar | Approx. Orifice Dia (mm) | Approx. Cov. D (mm) | Approx. Spray. Height (mm) | Pipe Size | Dim (mm) | Wt. (g) Metal | ||||
| 2 bar | 5 bar | 20 bar | 70 bar | A | B | |||||||
| JM6 | 0.0137 | 0.031 | 0.061 | 0.114 | 0.152 | 203 | 103 | 1/8 | 19.1 | 11.1 | 7 | |
| JM8 | 0.0259 | 0.058 | 0.116 | 0.217 | 0.203 | 254 | 127 | |||||
| JM10 | 0.0387 | 0.087 | 0.173 | 0.324 | 0.254 | 254 | 127 | |||||
| JM12 | 0.0524 | 0.117 | 0.234 | 0.439 | 0.305 | 254 | 127 | |||||
| JM15 | 0.0843 | 0.119 | 0.189 | 0.377 | 0.705 | 0.381 | 254 | 127 | ||||
| JM20 | 0.153 | 0.216 | 0.341 | 0.683 | 1.28 | 0.508 | 310 | 155 | 1/4 | 24.6 | 14.2 | |
| JM24 | 0.228 | 0.322 | 0.510 | 1.02 | 1.91 | 0.610 | 400 | 200 | ||||
| JM28 | 0.296 | 0.419 | 0.662 | 1.32 | 2.48 | 0.711 | 460 | 230 | ||||
| JM32 | 0.410 | 0.902 | 0.917 | 1.83 | 3.43 | 0.813 | 560 | 280 | ||||
| JM40 | 0.638 | 0.902 | 1.43 | 2.85 | 5.34 | 1.02 | 610 | 305 | ||||
Flow Rate(l/min): K√bar
Standard Materials: Brass, 303 Stainless Steel, and 316 Stainless Steel
Spray angle performance varies with pressure. Contact CYCO for specific data on critical applications.
