Low Pressure Flat Fan Spray Nozzle

When the distance between the spray poles and the nets or the blanket is small, this low pressure flat fan spray nozzle is your best choice.

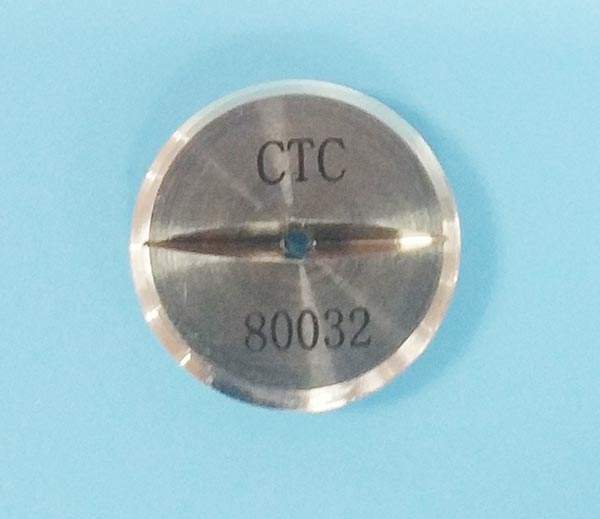

cyco-ctc-low-pressure-flat-fan-spray-nozzle
low-pressure-flat-fan-nozzle

Features of Low Pressure Flat Fan Spray Nozzle:

It is made of SS303 or SS31 6 which is durable and incorrodible. It can be used for cleaning or lubrication, suction box water lubrication, Low pressure washing and knife sopping and lubricating.

low pressure flat fan spray nozzle CTC model
low-pressure-flat-fan-spray-nozzle-CTC-model-diagram
dimension-and-the-installation-of-low-pressure-flat-fan-spray-nozzle
dimension-and-the-installation-of-low-pressure-flat-fan-spray-nozzle
CTC Shape Fan Spray Nozzle

CTC Shape Low Pressure Fan Spray Nozzle

CTY-Shape-Fan-Spray-Nozzle

CTY Shape Low Pressure Fan Spray Nozzle

Performance data of CTC Shape Low Pressure Flat Fan Spray Nozzle:

Model of Nozzle Equivalent aperture (mm) Material Capacity(L/min) Spray angle
(3 kg)
*SS 316SS 1Bar 3Bar 5Bar 6Bar 10Bar
CTC-2510 2. 3 3. 9 5. 1 5. 6 7. 2 25°
CTC-3580 6. 4 18. 2 32 41 45 58 35°
CTC-4040 9. 1 15.8 20 22 29 40°
CTC-4047 4. 7 10. 7 18. 6 24 26 34
CTC-4067 15. 3 26 34 37 48
CTC-4070 5. 5 16. 0 28 36 39 50
CTC-4085 6. 4 19. 4 34 43 47 61 43°
CTC-4308 1 . 9 1 . 8 3. 2 4. 1 4. 5 5. 8
CTC-4313 2. 4 3. 0 5. 1 6. 6 7. 3 9. 4
CTC-50033 1 . 2 0. 75 1.3 1. 7 1. 8 2. 4 50°
CTC-5024 3. 2 5. 5 9. 5 12. 2 13. 4 17. 3
CTC-5033 4. 0 7. 5 13 16. 8 18. 4 24
CTC-5O37 8. 4 14. 6 18. 9 21 27 55°
CTC-55054 1 . 6 1. 2 2. 1 2. 8 3. 0 3. 9
CTC-5508 1 . 9 1. 8 3 2 4. 1 4. 5 5. 8 58°
CTC-5824 3. 2 5. 5 9. 5 12. 2 13. 4 17. 3
CTC-5833 4. 0 7. 5 13 16. 8 18. 4 24 60°
CTC-60054 1 . 6 1. 2 2. 1 2. 8 3. 0 3. 9 65°
CTC-65054 1 . 6 1. 2 2. 1 2. 8 3. 0 3. 9
CTC-6513 2. 4 3. 0 5. 1 6. 6 7. 3 9. 4
CTC-6519 2. 8 4. 3 7. 5 9. 7 10. 6 13. 7
CTC-6533 4. 0 7. 5 13 16. 8 18. 4 24
CTC-6550 4. 7 11.4 19. 7 25 28 36
CTC-6570 5. 5 16. 0 28 36 39 50 68°
CTC-6824 3. 2 5. 5 9.5 12. 2 13. 4 17. 3
CTC-6840 9. 1 15.8 20 22 29
CTC-6864 14. 6 25 33 36 46
CTC-6870 5. 5 16. 0 28 36 39 50 70°
CTC-70023 1 . 0 0. 52 0. 91 1. 2 1. 3 1. 7 80°
CTC-80032 1 . 2 0. 73 1.3 1. 6 1. 8 2. 3
CTC-80054 1 . 6 1. 2 2. 1 2. 8 3. 0 3. 9
CTC-8008 1 . 9 1. 8 3. 2 4. 1 4. 5 5. 8
CTC-80084 1 . 9 1. 9 3. 3 4. 3 4. 7 6. 1
CTC-8013 2. 4 3. 0 5. 1 6. 6 7. 3 9. 4
CTC-8024 3. 2 5. 5 9. 5 12. 2 13. 4 17. 3
CTC-8033 4. 0 7. 5 13 0 16. 8 18. 4 24
CTC-8040 9. 1 15 8 20 22 29
CTC-90016 0. 79 0. 36 0. 63 0. 82 0. 89 1. 2 90°
CTC-90054 1 . 6 1. 2 2. 1 2. 8 3. 0 3. 9
CTC-9013 2. 4 3. 0 5. 1 6. 6 7. 3 9. 4

Performance data of CTY Shape Low Pressure Flat Fan Spray Nozzle:

Model of Nozzle Equivalent aperture (mm) Capacity(L/min) spray angle
(3kg)
10Bar 20Bar 30Bar 60Bar 100Bar 150Bar
CTY-35084 0. 076 0. 42 0. 59 0. 73 1 . 0 1 . 3 1 . 6 35°
CTY-3524 0. 1 25 1 . 2 1 . 7 2. 0 2. 9 3. 7 4. 6 35°
CTY-3572 0. 218 3. 5 5. 0 6. 2 8. 8 11.3 14. 0 35°
CTY-4513 0. 093 0. 66 0. 93 1 . 1 1 . 6 2. 0 2. 5 43°
CTY-3513 0. 093 0. 65 0. 93 1 . 1 1 . 6 2. 0 2. 5 50°
CTY-3524 0. 1 25 1 . 2 1 . 7 2. 0 2. 9 3. 7 4. 6 50°
CTY-55054 0. 062 0. 27 0. 38 0. 47 0. 66 0. 84 1 . 0 55°
CTY-6513 0. 093 0. 66 0. 93 1 . 1 1 . 6 2. 0 2. 5 65°
CTY-6824 0. 1 25 1 . 2 1 . 7 2. 0 2. 9 3. 7 4. 6 68°
CTY-70054 0. 062 0. 27 0. 38 0. 47 0. 66 0. 84 1 . 0 70°
CTY-8013 0. 093 0. 65 0. 93 1 . 1 1 . 6 2. 0 2. 5 80°
CTY-8O24 0. 1 25 1 . 2 1 . 7 2. 0 2. 9 3. 7 4. 6 80°
CTY-8054 0. 1 87 2. 7 3. 8 4. 7 6. 6 8. 5 10. 5 80°
CTY-90054 0. 062 0. 27 0. 38 0. 47 0. 66 0. 84 1 . 0 90°
CTY-9013 0. 093 0. 66 0. 93 1 . 1 1 . 6 2. 0 2. 5 90°

Ordering Info of Low Pressure Flat Fan Spray Nozzle:

CTC 6513 SS
Nozzle Model Serial No. Code Material
CTY 6513 SS
Nozzle Model Serial No. Code Material
SPECIFICATION SHEET
