PVDF Spray Nozzle
PVDF spray nozzle is made of PVDF, which is a sort of natural & pure material without pigment. It can keep high clarification in processing and met the requirements high.
Application:
- PCB
- Dust Removing
- Quenching & Cooling
- Gas Filtration
- Oxidization, Froth
- Extinguishment & aeration
- Wash & Rinse
Design Features of PVDF Spray Nozzle
1 High Purity
PVDF nozzle is made of PVDF,which is a sort of natural & pure material without pigment. It can keep high clarification in processing and meet the requirements high.
2. Heat Resistance
Max temperature of PVDF nozzle is 148°C with 7kg press; Suitable for PCB printing course,including development, plating, etching and film removal.
3 Anti Corrosive
PVDF has good anti corrosion; The PVDF nozzle can be widely used in spraying of chlorid, acid, alkali and amidoc yanogen with good antiaging performance.
4 Wide Scope and Long Life
Available sizes of PVDF nozzle: 1/8″, 1/4″ & 3/8″ Three available size for common pipes with different spraying capacity and angle to meet various requirements. As high hardness material, it is wearable and impact resistant with high-intensity.

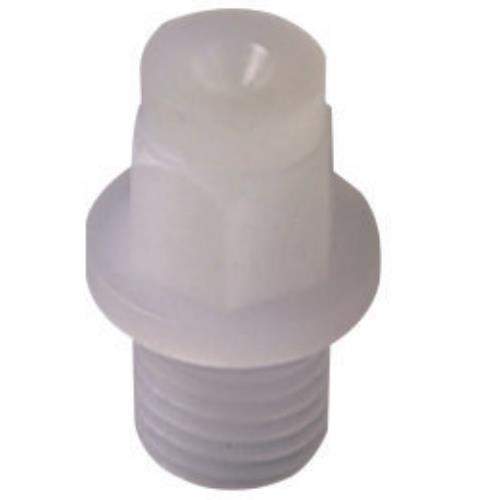

BB-KY PVDF Spray Nozzle Performance Data:
| Inlet Joint | Capacity | Capacity (L/min) | Spray angle | ||||||
| 0.7Bar | 1.5Bar | 3Bar | 6Bar | 7Bar | 0.7Bar | 1.5Bar | 6Bar | ||
| 1/8 | 1.3 | 0. 5 | 0. 7 | 0. 97 | 1. 3 | 1. 4 | 52° | 65° | 59° |
| 3 | 1. 1 | 1. 6 | 2. 2 | 3. 1 | 3. 3 | 52° | 65° | 59° | |
| 4 | 1. 5 | 2. 2 | 3. 0 | 4. 1 | 4. 4 | 52° | 65° | 59° | |
| 6 | 2. 3 | 3. 2 | 4. 5 | 6. 1 | 6. 6 | 67° | 75° | 82° | |
| 1/4 | 6 | 2. 3 | 3. 2 | 4. 5 | 6. 1 | 6. 6 | 67° | 75° | 82° |
| 8 | 3. 0 | 4. 3 | 6. 0 | 8. 2 | 8. 8 | 58° | 70° | 64° | |
| 3/8 | 6 | 2. 3 | 3. 2 | 4. 5 | 6. 1 | 6. 6 | 67° | 75° | 82° |
| 8 | 3. 0 | 4. 3 | 6. 0 | 8. 2 | 8. 8 | 58° | 70° | 64° | |
| 10 | 3. 8 | 5. 4 | 7. 4 | 10. 2 | 11. 0 | 58° | 70° | 64° | |

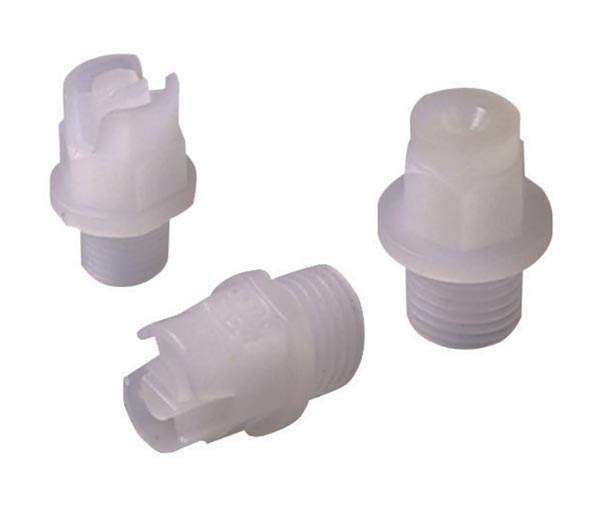

CC-KY Series PVDF Spray Nozzle Performance Data:
| Inlet | Spray Angle | Capacity (L/min) | |||||||||
| Joint | 65° | 80° | 95° | 120° | 0.3Bar | 1Bar | 3Bar | 5Bar | 6Bar | 7Bar | 10Bar |
| 1/8 | 6502 | 8002 | 9502 | 12002 | 0. 25 | 0. 46 | 0. 79 | 1. 0 | 1. 1 | 1. 2 | 1. 4 |
| 6503 | 8003 | 9503 | 12003 | 0. 37 | 0. 68 | 1. 2 | 1. 5 | 1. 7 | 1. 8 | 2. 2 | |
| 6504 | 8004 | 9504 | 12004 | 0. 50 | 0. 91 | 1. 6 | 2. 0 | 2. 2 | 2. 4 | 2. 9 | |
| 6505 | 8005 | 9505 | 12005 | 0. 62 | 1. 1 | 2. 0 | 2. 5 | 2. 8 | 3. 0 | 3. 6 | |
| 6506 | 8006 | 9506 | 12006 | 0. 75 | 1. 4 | 2. 4 | 3. 1 | 3. 3 | 3. 6 | 4. 3 | |
| 6508 | 8008 | 9508 | 12008 | 1. 0 | 1. 8 | 3. 2 | 4. 1 | 4. 5 | 4. 8 | 5. 8 | |
| 1/4 | 6510 | 8010 | 9510 | 12010 | 1. 2 | 2. 3 | 3. 9 | 5. 1 | 5. 6 | 6. 0 | 7. 2 |
| 6515 | 8015 | 9515 | 12015 | 1. 9 | 3. 4 | 5. 9 | 7. 6 | 8. 4 | 9. 0 | 10. 8 | |
| 6520 | 8020 | 9520 | 12020 | 2. 5 | 4. 6 | 7. 9 | 10. 2 | 11. 2 | 12. 1 | 14. 4 | |
| 3/8 | 6530 | 8030 | 9530 | 12030 | 3. 7 | 6. 8 | 11. 8 | 15. 3 | 16. 7 | 18. 1 | 22 |
Ordering info of PVDF Spray Nozzle:
| BB-KY | — | 1/8 | — | 4 |
| ↓ | ↓ | ↓ | ||
| Nozzle series | Inlet Connection | Flow rate code |
| CC-KY | — | 1/4 | — | 6510 |
| ↓ | ↓ | ↓ | ||
| Nozzle series | Inlet Connection | Flow rate code |
You can email [email protected] for more information, and you will get a reply within 24 hours.
