Spray Lance

Spray Lances mainly is used for gas handling, such as gas cooling, gas scrubbing and so on. CYCO & Changyuan produce sorts of spray lance, Check it in below or custom yours via our expert.

spray lanceextension type spray lance

Spray Lance Character:

  • Material: 303ss, 316ss, 310ss, Hastelloy;

  • Spray Pattern: Full Cone, hollow cone, flat fan.

  • Spray Angle: 20°,60°,90° (other angles are available upon request)

  • Capacity: 2.0L to 80L/min;

There are sorts of spray lances in CCNOZZLE, we will introduce some of them, stay tuned.

spray lance2

CDE spray lance

Design features:

  • Application: dust removing, desulfurization and denitrification of power plant; other chemical plants; cement plant; dust control and environmental projects, etc.
  • Use steam or air as the second fluid;
  • Three-stage atomization can achieve the best atomization performance;
  • High-efficiency design reduces the consumption of compressed air;
  • With internal spiral nozzle for the second-stage atomization, the channel with large core diameter can effectively prevent clogging;
  • Spray pattern: hollow cone, full cone, flat fan;
  • Spray angle: 20°, 60°, 90° (Other degrees can also be provided if you require. );
  • Flow rate: 2.0 — 80L / min;
  • Material: 303SS, 316SS, 316L, 310SS, 2205, PVDF, Cobalt alloy 6, Hastelloy, etc. ( Other materials are also available as your requirement. )

Design features:

  • The strict control of droplet size and spray coverage allows this kind of nozzle to ideally modulate the fumes of gases in the furnace, cooling tower, flue, dryer, etc.
  • Multi-stage atomization process produces extremely tiny droplets using as little air as possible.
  • A single nozzle is capable of ejecting a larger flow of water, reducing the total number of nozzles required.
  • Higher flow rate ensures stable air pressure.
  • Material: 303SS, 316SS, 310SS, Hastelloy, etc.
  • Large free and clear passage, more flexible requirements for water quality.
SNCR spray lance

CFM spray lance

SCR spray lance

CSIM Blade Type Nozzle

Design features:

  • The average particle diameter is 50um at the spray amount of 17L/min and the air-water ratio of 150.
  • Spray angle: 20°, 60°.
  • Developed based on a new concept, with an excellent micronization ability.
  • Low ratio of air and water, can produce large volume spray with less compressed air.
  • Material: 303SS, 316SS, 310SS, Hastelloy, etc.
  • Simple structure, easy for maintenance.

Design features:

  • Simple structure, non-clogging design, easy for maintenance.
  • Uniform water distribution.
  • Less air consumption.
  • Wide spray coverage.
  • Small average particle radius, small particle radius difference.
  • Low air-water ratio produces fine particles, save air consumption.
  • Long service life due to optimized design for gas-water mixing structure.
  • Material: 303SS, 316SS, 310SS, Hastelloy, etc.

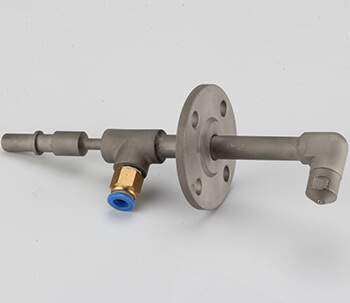

extension type spray lance

CSMM Back End Atomizing Nozzle

spray lance for pharmacy

FIM Micro Mist Spray Nozzle

Design features:

  • Spray pattern: full cone or flat fan.
  • Less spray volume, the average particle size within 50um, the biggest particle size is 120um.
  • Low air-water ratio, low flow rate.
  • Advanced and mini design.
  • Uniform distribution of particle size provides excellent superior guarantee for uniform evaporation and absorption of liquids.
  • Material: 303SS, 316SS, 310SS, Hastelloy, etc.
