Standard Angle Full Cone Spray Nozzle

BB series standard angle spray nozzle features a full cone spray pattern with a round impact area, and spray angles between 43° to 106°.

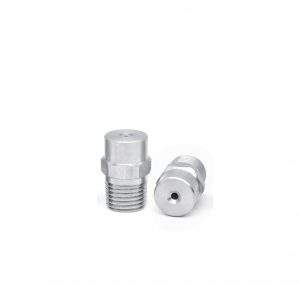

full cone nozzle with standard angle

▶ Material: Brass, Stainless Steel, Plastic

▶ Thread Type: NPT, BSPT, Inner or External Thread

▶ Spray pattern: Full Cone

▶ Working Pressure: 0.4-10 bar

Standard Angle (43 to 106 degree) Full Cone Spray Nozzle Features:

The nozzle produces a uniform distribution from medium to large size drops over a wide range of flow rates and pressures.

Their uniform spray distribution result from a unique vane design large and easy flow passages and superior spray control design.

full cone spray nozzles

Machined critically, BB series metal nozzles ensure correct and dependable performance with exact sizes.

They are ideal for applications requiring complete coverage to a certain area.

BB series metal nozzles have knock-down cap and vane can be suitably connected with pipe collection and multi-pipe.

Under this design way, its working-end(cap and vane) can be knocked down off the nozzle body to be overhauled an cleaned, without knocking down the nozzle body off the pipe.

Commonly Application

Standard angle full cone nozzle is wildly used in exhaust gas scrubbing, quenching, and cooling, dust extinguishing, defoaming, etc.

Choosing your nozzle in above form or directly inquiry our expert via below form.

Standard Angle Full Cone Spray Nozzle Performance Data

Nozzle Inlet Con. (in.) Nozzle Type Capa. Size orifice Dia. (mm) Max. Hole Dia. (mm) Capacity (L/min) Spray Angle (Degree)
Standard Type
BG BBG B BB 0.4 0.5 1.5 6 10 0.5 1.5 6
1/8 1 0.79 0.64 0.29 0.33 0.54 1 1.3 58 53
1.5 1.2 0.64 0.44 0.49 0.81 1.5 1.9 52 65 59
2 1.2 1 0.59 0.65 1.1 2 2.6 43 50 46
3 1.5 1 0.88 0.98 1.6 3.1 3.9 52 65 59
3.5 1.6 1.3 1 1.1 1.9 3.6 4.5 43 50 46
3.9 2 1 1.1 1.3 2.1 4 5.1 77 84 79
5 2 1.3 1.5 1.6 2.7 5.1 6.5 52 65 59
6.1 2.3 1.3 1.8 2 3.3 6.2 7.9 69 74 68
1/4 6.5 2.4 1.6 1.9 2.1 3.5 6.7 8.4 45 50 46
10 3.2 1.6 2.9 3.3 5.4 10.2 13 58 67 61
12.5 3.2 1.6 3.7 4.1 6.8 12.8 16.2 69 74 68
3/8 9.5 2.6 2.4 2.8 3.1 5.1 9.7 12.3 45 50 46
15 3.6 2.4 4.4 4.9 8.1 15.4 19.4 64 67 61
20 4 2.8 5.9 6.5 10.8 20 26 76 80 73
22 4.5 2.8 6.5 7.2 11.9 23 28 87 90 82
1/2 16 3.5 3.2 4.7 5.2 8.7 16.4 21 48 50 46
25 4.6 3.2 7.4 8.2 13.5 26 32 64 67 61
32 5.2 3.6 9.4 10.4 17.3 33 41 72 75 68
40 6.2 3.6 11.8 13.1 22 41 52 88 91 83
50 6.7 4 14.7 16.3 27 51 65 91 94 86
3/4 2.5 4.9 4.4 8.7 9.6 11.2 30 38 48 50 46
4 6.4 4.4 13.9 15.4 18 48 61 67 70 63
7 9.5 5.2 24 27 31 84 107 89 92 84
1 4.2 6 5.6 14.6 16.2 18.9 51 64 48 50 46
7 8.3 5.6 24 27 31 84 107 67 68 62
8 9.5 5.6 28 31 36 97 122 72 81 82
10 11.9 5.6 35 38 45 121 153 78 90 94
12 11.9 6.4 42 46 54 145 183 89 92 84
1-1/4 6 7.4 6.4 21 23 38 72 92 48 50 44
10 9.6 6.4 35 38 64 121 153 64 67 58
12 10.7 6.4 42 46 77 145 183 66 70 60
14 12.3 6.4 49 54 89 169 214 77 80 70
16 12.7 7.9 56 62 102 193 244 73 76 66
20 15.1 7.9 69 77 128 241 305 90 93 81
1-1/2 10 9.5 8.7 35 38 64 121 153 48 50 44
16 12.7 8.7 56 62 102 193 244 72 74 64
20 14.3 8.7 69 77 128 241 305 74 76 66
30 18.3 10.3 104 115 191 362 458 91 94 82
2 17 12.7 11.1 59 65 108 205 259 49 50 44
30 17.3 11.1 104 115 191 362 458 72 74 64
35 19.2 11.1 122 135 223 422 534 75 77 68
40 21 11.1 139 154 255 483 611 78 80 70
50 23.8 14.3 174 192 319 603 763 83 85 75
60 28.6 14.3 208 231 383 724 916 98 100 86

Ordering Info of Stand angle full cone nozzle:

BB 1/8 SS 2.8W
Single Nozzle Type Inlet Size Material Code Capacity Size
