Tank Washing Nozzle K4 9800

The 9800 washing nozzle is designed for effective cleaning of small containers .

Rotating Tank Wash Nozzles
  • Available in a choice of 15 or 21 full cone spray tips

  • Fit through a standard drum mouth. It can be installed on a self driven drum washer.

  • The biggest diameter of the spray tip is 35mm with a 16mm reduced neck design.

Tank Washing Nozzles 9800 Features:

he nozzles is available in a choice of 15 or 21 full cone spray tips that can provide complete coverage of the interior surface of the small containers at pressure up to 10 bar.

The 9800 nozzle fit through a standard drum mouth .It can be installed on a self driven drum washer .The biggest diameter of the spray tip is 35mm with a 16mm reduced neck design .Constructed of SS,this nozzle is an ideal application when max. corrosion resistance is required.

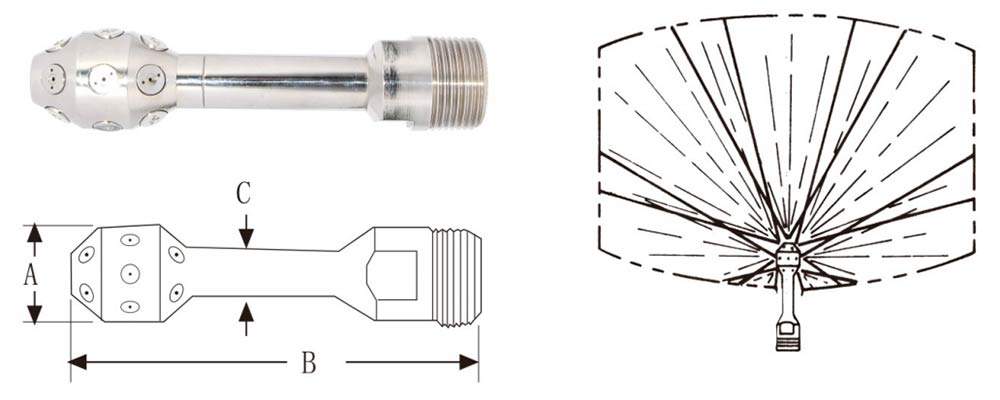

Tank Washing Nozzles 9800 Diagram:

diagram-of-tank-washing-nozzle-k4-9800

Performance Data of Rotating Tank Wash Nozzle:

Nozzle order number Capacity (L/min)
1Bar 2Bar 3Bar 4Bar 5Bar 6Bar 7Bar 10Bar
9800-15-SS 20 23 25 26 31
9800-21-SS 28 31 34 36 43

9800 Model Nozzle Serial Number:

Nozzle serial number 9800-
Pipe joints NPT or 1 Inch
BSPT(male)
A(mm) 35
B(mm) 156
C(mm) 16
Net Weight(Kg) 0.51
