Project Description

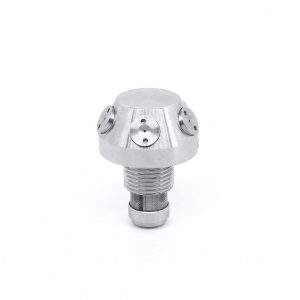

Water Mist Nozzle For Fire-fighting

CYCO & Changyuan Firefighting nozzle is used to suppress fire with water mist,  in recently, water mist has become the trend for fire suppression.

water mist nozzle for fire-fighting

Fire Fighting Nozzle Characters:

  • Small droplets, very good evaporative cooling ability.

  • Water mist is completely harmless to people and the environment

  • Can make a good coverage of the fire sources, flame and smoke, blocking the expansion of the fire

The nozzle is the key component in this process, Below is the information on our new firefighting nozzle.

Water Mist Nozzle For Fire-fighting Features:

Operating pressure: 10Mpa – 12 Mpa,
Droplet size: Dv(0.9)=100μm,
316SS material for better erosion resistance.

Mechanisms of water mist system to fight the fire:
Cooling: small droplets, very good evaporative cooling ability
Radiant heat blocking: vapor from the evaporation of micro-drops make a good coverage of the fire sources, flame and smoke, blocking the expansion of the fire.

Advantages of  the WATER MIST SYSTEM for firefighting:
Highly efficient: efficient on both A- and B-class fires in laboratory tests and actual fires,
Non-hazardous: water mist is completely harmless to people and the environment,
Clean: water mist uses only small amounts of plain, fresh water. It causes virtually no damage and requires very little clean-up,
No sealed space: water mist does not require an enclosed space.

Application

  • Firefighting.
Download Specification
high pressure water mist nozzle for firefighting sizes and diagram

Performace Data

S/NModelKfactor (K)Work Pressure (MPa)Flow Rate (L/M)Max Installation Space (m)Max Installation Height (m)
1XSWT0.5/100.51052.53
2XSWT0.7/100.71072.53
3XSWT0.9/100.910933
4XSWT1.0/101101033
5XSWT1.2/101.2101234
6XSWT1.5/101.510153.54
7XSWT1.7/101.7101744
8XSWT2.0/102102045

Ordering Information

XSWT 1.1/10
1.0-K factor (K)
10MPa 10-minimum working Pressure 10MPa
Please contact our sales engineer for details
