Project Description

Ultrasonic Atomizing Nozzle

The ultrasonic atomizing nozzle can be used for efficient moisturization, cool spraying, mould lubricating, spraying injection and air disinfection etc.

  • ultrasonic atomizing nozzle3
  • ultrasonic atomizing nozzle2
  • ultrasonic atomizing nozzle

Ultrasonic Atomizing Nozzle Character:

  • The average droplets are small and uniform. It is very important for dust suppression.
  • The vibration of the impinging head and high-speed air can avoid the dust adhere to the spray hole. It is reliable and less fixed.
  • Very easy to install.

Ultrasonic Atomizing Nozzle

Nozzle Appearance

types of ultrasonic atomizing nozzle

Technical Datas

ultrasonic atomizing nozzle technical datas

Installation

The ultrasonic atomizing nozzle can connect by the two different adapters, common type, and thin-wall types.

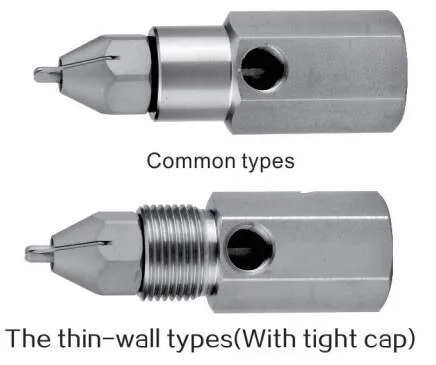

ultrasonic atomizing nozzle installation

Common types

Common types can be welded or other methods to fix at the working point water inlet thread is G1/8, Air inlet thread is G1/4.

Air Ultrasonic Atomizing Nozzle 7

The thin-wall types

The thin-wall types install on the thin wall, the bottom thread fit into the thin wall openings, and use the caps to fix it on the wall.

Air Ultrasonic Atomizing Nozzle 9

SPECIFICATION SHEET
